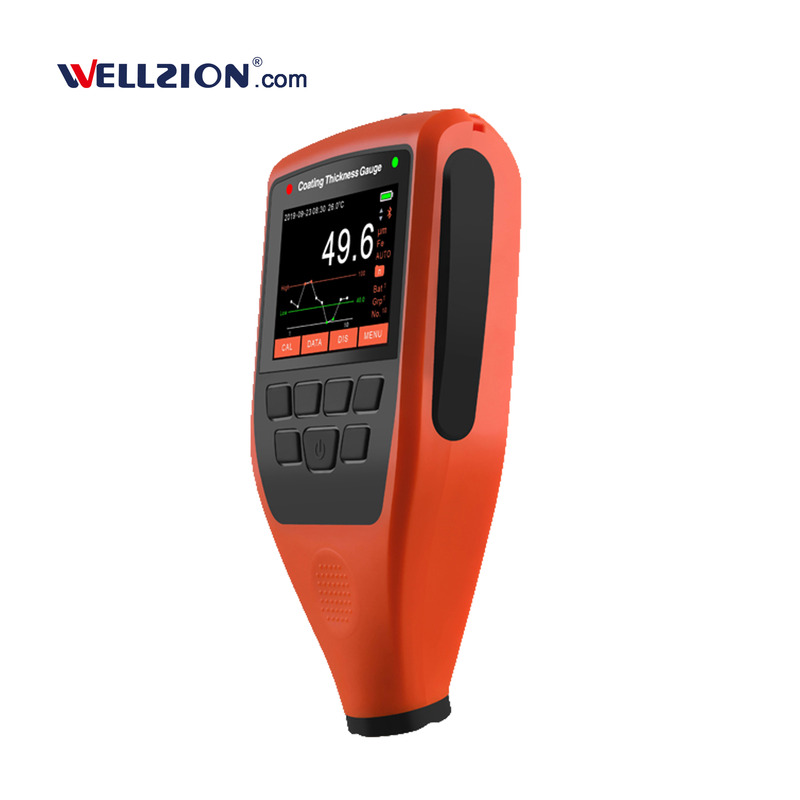

EC-777,2000um EC-777 Chart Display Paint Layer Thickness Gauge

For quick reply

For more discounts

For update info : www.weLLzion.com

This series of thickness gauge can nondestructive measure the thickness of non-conductive coatings on metal surfaces and non-ferromagnetic metal coatings on ferromagnetic metals (e.g. iron, nickel, cobalt, etc.), including measuring the thickness of iron, stainless steel surface paint or galvanized layer, measuring the thickness of
aluminum,copper surface paint or plastic film.
EC-777 is with a Internal probe, magnetic induction and eddy current effect integrated probe, measuring range is 0~2000μm and measuring accuracy is ±(2%+1μm), resolution is up to 0.1μm.
EC-777 is highly anti-interference and can work in complex electromagnetic field. During measurement, the user needs to quickly attach the end of probe to the surface of the object being measured, during the process of the probe shrinking into the instrument, the instrument can automatically distinguish the properties of the substrate
and measure the thickness of the coating (plating) layer. The measurement results can be sent to the APP in real time by Bluetooth. Besides, with big memory card, the gauge record data automatically. And records could be sent to computer by USB.
EC-777 has a strong data processing ability, can display a variety of statistics map and data, and can indicate and alert the over-limit situation.
The instrument integrates AI technology and adds the functions of environment self-adaptation and self-protection. The instrument is with a simple standardized menu interface on the large color screen. The realization of many advanced technology and schemes has greatly enhanced the user’s sense of human-computer interaction experience.
EC-777E is with external probe version, the gauge can be equipped with a variety of separated probes for easy replacement. EC-777E is better suited to work in narrower spaces or on assembly lines compared with EC-777.

• 2.4 inch color screen with Bluetooth function
• Double principle in one, ruby probe
• Measuring range is 0 to 2000um with External probe (other ranges can be customized)
• 0.1μm resolution and ±(2%+1um) accuracy
• The maximum speed is 2 times/s
• Support zero calibration and multi-point calibration
• Display a curve, bar chart or trend chart
• Automatic rotation screen
• USB to computer
• Sound volume adjustable
• Red LED alarm, blue and green LED status reminder

NOTE:
Best operation environment is in 25℃ and 40%RH~60%RH.
Sun exposure avoided.
Corrosive chemicals avoided.
Prevent the device from falling out.

WARNING:
Self-disassemble is not allowed!
No surge with heavy currents/static electricity!
