Productomschrijving
Product Feature

It is transmitted at a constant speed and can distinguish waves reflected from the back side for this instrument.
It can also be widely used in manufacturing, metal processing, commodity inspection and other materials that allow ultrasonic waves.
Wide application: The ultrasonic thickness gauge is suitable for the material that conduct and reflect constant sonic , such as metal, plastic, ceramic, glass, etc.

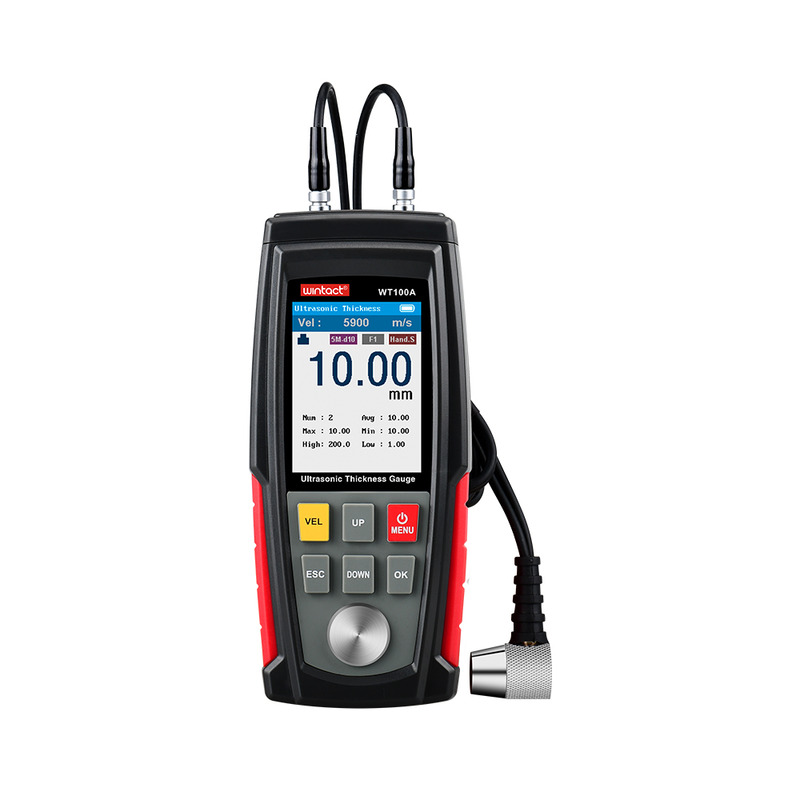

The Intelligent Handheld Ultrasonic Thickness Gauge is microprocessor controlled and can measure thickness quickly and accurately and with sound of various materials without ultrasonic measurement damage.
This tool is capable of accurately measuring parts in different materials or industrial production, as well as monitoring pressure vessels for pipes and production equipment, as well as the extent to which various parts are corroded

Product Description

WT100A
Measuring range 1.00 -225.0mm
Data storage 500
Probe selection X
Operation 5MHz
Frequency 5MHz
Measurement error ±(0.5%H+0.05)mm
Lower limit of pipe measurement 020x3mm (steel)
Adjustment range of sound speed 1000-9999m/s
Temperature range of operation 0 -40°C
Battery 3 Ni-MH rechargeable batteries of 1.2V
USB Charging 5V 1A
Dimensions 65*146*30mm/2.6*5.7*1.2in
Weight 130g/4.6oz
Probe Measurement parameters
5Md10 1.0-225.0mm
5Md6 X
2. 5M X
High temperature X

Packaging & Shipping

1x Digital Ultrasonic Thickness Gauge
2x Probe
1x Retail Case
1x Charger
1x Use's Manual
