Digital Coating Thickness Gauge Car Paint Thickness Meter Economy Mini Type CTG-08 (F/NF) 0-1250um CTG-08

1 Unit
MOQ
$100.00(1 - 1 Units) $95.00(2 - 4 Units) $85.00(5 - 9 Units) $70.00(>=10 Units)
Prijs
Digital Coating Thickness Gauge Car Paint Thickness Meter Economy Mini Type CTG-08 (F/NF) 0-1250um CTG-08
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Warranty: 1 year
Type: Coating Thickness Meter
Customized support: OEM
Model Number: CTG-08
Operating Principle: Magnetic Induction / Eddy Current (F / NF)
Measuring Range: 0~1250 um / 0~50 mil
Accuracy: ± 1~3%n or ± 2.5 um
Metric / Imperial: Convertible
Basis informatie
Model Number: CTG-08
Betalen & Verzenden Algemene voorwaarden
Packaging Details: 1 unit is 0.28kg. carton size: 17.5*8.7*5.7cm
Productomschrijving

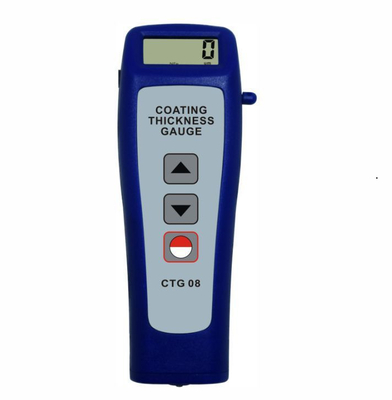

Coating Thickness Meter CTG-08

Application:used for measuring thickness and corrosion of pressure vessels,chemical equipment,boilers,oil storage tanks,etc.in industries of petroleum,shipbuilding,power station,and machine manufacturing.

* Two measuring methods: magnetic induction (F) and eddy current (N)
* Two measurement mode: Single and Continuous(Notice:Continuous mode is convenient to measure the
coating thickness of curved objects and tiny objects.)
* Metric/imperial system selectable.
* Manual or automatic shut down.
* Auto memory of calibration value,and auto recognize the substrate.
* Operation process have buzzing reminder,while no buzzing in continuous mode.
* Use “USB data output” and “RS-232 data output” to connect with PC.
* Provide “BT ™ data output” choice.
* Integral Type suitable for single-hand operation, large probe with large contact surface have better stability,
users can get continuous, good repetitive and precise measurements.
Operating Principle Magnetic Induction / Eddy Current (F / NF)
Measuring Range 0~1250 um / 0~50 mil
Resolution 0.1 um / 1 um
Min. Radius Workpiece F Type: convex 1.5 mm / concave 25 mm NF Type: convex 3 mm / concave 50 mm
Min. Measuring Area 6 mm
Min. Sample Thickness 0.3 mm
Accuracy ± 1~3%n or ± 2.5 um
Auto Power Off
Metric / Imperial Convertible
Battery Indicator Low Battery Indicator
Operating Conditions Temp. 0~40 °C, Humidity: 10~90 %RH
Power Supply 4 x 1.5 V AAA (UM-4) Battery
Dimensions 126 x 65 x 27 mm
Weight 81 g (Not Including Batteries)

Standard Accessories:

1. Main Unit

2. Calibration Base Set (F Type / NF Type) CTG-BS

3. Calibration Foils CTG-CF (1 set, 4 pieces)

4. Carrying Case

5. Operation Manual

Optional accessories:

1. USB, RS-232C data cable with software
2. BT data out put with software

Packaging & Shipping

1 unit is 0.28kg. carton size: 17.5*8.7*5.7cm

Normally ship by FEDEX, UPS, DHL, AIR ,SEA

Our Services

One year after service , supply service forever
