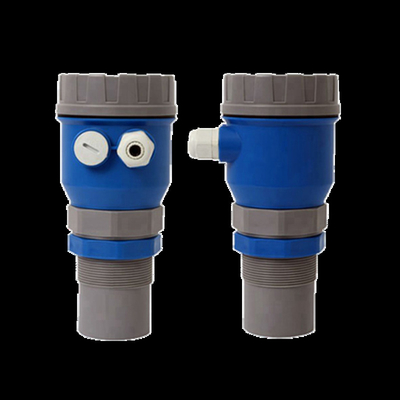

Cheap Digital Ultrasonic Water Level Gauge 4-20ma Depth Liquid Level Meter YK-CW

1 Set
MOQ
$208.00(2 - 4 Sets) $189.00(5 - 9 Sets) $175.00(>=10 Sets)
Prijs
Cheap Digital Ultrasonic Water Level Gauge 4-20ma Depth Liquid Level Meter YK-CW
Kenmerken Galerij Productomschrijving Verzoek om een Citaat
Kenmerken
Specificaties
Model Number: YK-CW
Product name: digital ultrasonic level gauge analogue water tank level sensor
Span: 0-20m
Blind Zone: <0.3m
Accuracy: ±0.3%*FS
Resolution: 1mm
Signal Output: 4-20mA
Communication: RS485/HART
Power supply: 220VAC
Protective Class: IP65(ABS)
Working Condition: AmbientTemp:0-60℃,Relative Humidity:<90%
Basis informatie
Model Number: YK-CW
Betalen & Verzenden Algemene voorwaarden
Packaging Details: Paper Carton Packed
Productomschrijving

digital ultrasonic level gauge analogue water tank level sensor

TypeYK-CW-200(Integration)YK-CW-500(Split)
Span0-5m,0-8m,0-10m,0-15m,0-20m,0-25m,0-30m
Blind Zone<0.3m
Temp.CompensationAutomatic Compensation,range0-99.9℃,Base 25℃
Accuracy±0.3%*MAX Span
Resolution1mm
Analog Signal Output 0-20mA
4-20mA(resistance<300Ω)4-20mA(resistance<300Ω)
0-5V
0-10V
Communication ProtocolRS485/HARTRS485/HART
Alarm RelayAC220V,3A *2AC220V,3A *2
Power Supply220VAC±10% 50HZ220VAC±10% 50HZ
24VDC24VDC
Protective ClassIP65(ABS)IP65(ABS)
Install Hole SizeM60*2mmM60*2mm
ConnectionThreaded,FlangeThreaded,Flange
Working ConditionAmbient Temp.0-60℃,Relative Humidity:<90%
