Productomschrijving

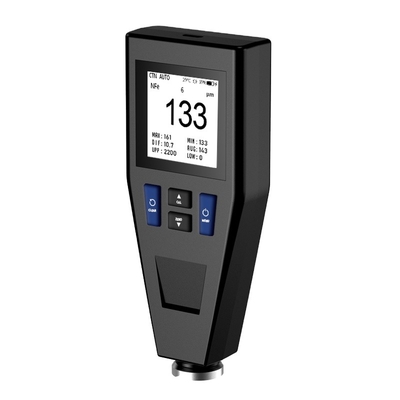

The coating thickness gauge has the characteristics of high measurement accuracy, high reliability, good stability, and easy operation. It is an indispensable testing instrument to control and ensure product quality. It is widely used in manufacturing, metal processing, chemical Commodity inspection and other testing fields.

Specification

Thickness Gauge Technical Parameters:
Item	Value
Principle	Magnetic induction/eddy current
Measurement range	0-2000um
Error	±(2.5%+2um)
Display accuracy	0.1um(0-99.9um); 1um( ≥100um)
Unit	um, mm, mils
Min.convex radius of curvature	5mm
Min.concave radius of curvature	25mm
Min. measurement area diameter	20mm
Min. substrate thickness	0.2mm/0.05mm
Calibration	probe calibration, zero calibration, multiple points calibration
Battery	3.7V/750Mah lithium battery
Charging voltage/current	5V/500mA
USB port	Micro B
Working climate	Temperature:0-50℃(32-122℉);humidity:20%-90%RH; no strong magnetic field; no strong electromagnetic interference
Storage condition	Temperature:-10-60℃(-14-140℉)
Dimension	1105021mm (4.331.960.83inch)
Material & weight	ABS plastic, silica gel, Plexiglass, weight:70g(3.24oz)
Standard configuration	Main instrument 1set, substrates 2pcs (Fe, nFe 1 pc each), calibration sheet (100um) 3pcs; cable 1pc, user manual 1pc, certificate 1pc, soft bag 1pc, packing box 1pc

Product Description

Our Advantages

OEM process Introduction

Warehousing Logistics

has an independent warehousing base. It integrates instrument research and development, It supports small batch spot delivery and mass customization.

Certifications

FAQ

1. Q: Does your company accept customization?
A: We do customizing service for our customers. OEM/ ODM is acceptable. Any logo and any color is up to you. English manual is
also available.
2. Q: Which shipping way can customers choose?
A: We can advise the suitable shipping way base on customer's order quantity.
For small quantity, it can be shipped by FedEx, DHL, TNT or EMS express.
For large quantity, it can be shipped by air or by sea.
3. Q: How to place an order?
a: Send us an inquiry.
b: Confirm your wanted product.
c: Confirm the price, freight cost and other details.
d: Complete the payment.
e: We start production and arrange the shipment.
f: Customer will receive the product.
